Necessary preliminary work

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Release screw (1).

Place gear position switch (2) to one side.

Tightening torque: see 1AZ in 24 30 HYDRAULIC / ELECTRIC CONTROL PARTS AND CONTROLLING ELEMENTS .

Fig 1: Identifying Gear Position Switch And Screw
G06897960Courtesy of BMW OF NORTH AMERICA, INC.

Slightly press bracket (1) upwards.

Using suitable tool (2) push gear selector valve (3) out of the mechatronics system.

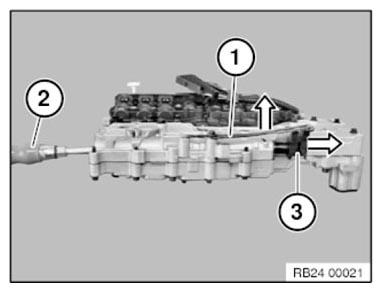

Fig 2: Removing Gear Selector Valve And Bracket From Mechatronics System
G06897961Courtesy of BMW OF NORTH AMERICA, INC.
