24 11 007 Replacing sealing plug (GA6L45R)
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
IMPORTANT:
After completion of work, check Transmission Fluid Level.
Use only the approved transmission fluid .
Failure to comply with this requirement will result in serious damage to the automatic transmission!
Necessary preliminary tasks:
- Remove Rear Underbody Protection

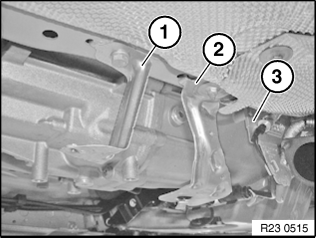

Remove holder (2).

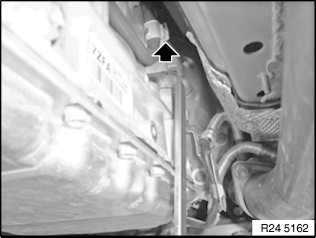

Unlock sealing plug with special tool 24 4 340 in direction of arrow and remove.
