24 40 011 Removing and installing/replacing transmission position sensor (GA6L45R)
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
After completion of work, check Transmission Fluid Level.
Use only approved transmission fluid
Failure to comply with this instruction will result in serious damage to the transmission.
Necessary preliminary tasks:
- Remove Transmission Oil Filter .

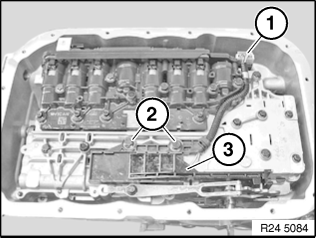

Unlock and disconnect plug (1).
Release screws (2).
Remove transmission position sensor (3).
For tightening torque refer to 24 30 1AZ in 24 30 HYDRAULIC / ELECTRIC CONTROL PARTS AND CONTROLLING ELEMENTS .
