23 11 614 Replacing guide tube for clutch release unit (GS6-37BZ/DZ)
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
(transmission removed)
Necessary preliminary tasks:
- Remove clutch release bearing and release lever from guide tube.

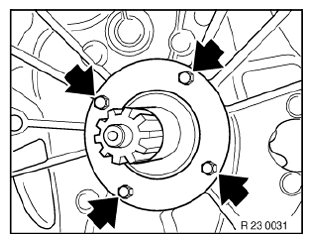

Unfasten screws.
Remove guide tube (1).
Installation:
Clean thread.
Install screws with Loctite 243.
For tightening torque refer to 23 11 2AZ in 11 HOUSING WITH COVER .
NOTE:
Remove sticker (1) and adhesive with a suitable solvent.
