18 12 044 Replacing front muffler (N52, N52K)

Special tools required:

• 00 2 210
• 31 2 220

Necessary preliminary tasks:

• E91/ E92/ E93 only: Remove Tension Strut on rear axle.

Support front muffler with special tool 31 2 220.

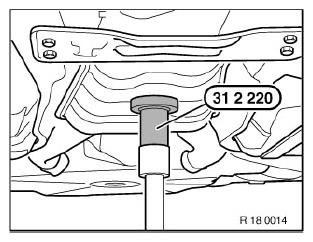

Fig 1: Special Tool (31 2 220)

Courtesy of BMW OF NORTH AMERICA, INC.

Carry over cutting line to faulty front muffler (1) and mark out.

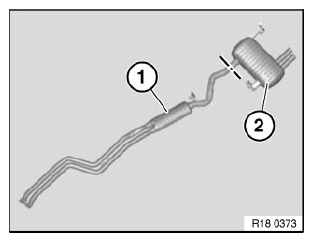

Fig 2: Rear Muffler

Courtesy of BMW OF NORTH AMERICA, INC.

Cut exhaust pipe at marked point with special tool 00 2 210 and deburr.

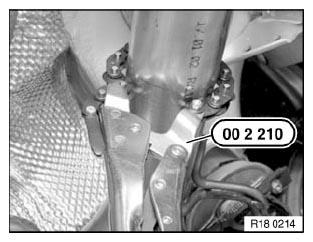

Fig 3: Special Tool (00 2 210)

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts.

Installation:

Replace self-locking nuts.

Replace seal.

For tightening torque refer to 18 20 1AZ in 18 20 EXHAUST SYSTEM SUSPENSION .

Fig 4: Exhaust Pipe Self-Locking Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Release bolt and remove bracket (1).

For tightening torque refer to 18 20 2AZ in 18 20 EXHAUST SYSTEM SUSPENSION .

Fig 5: Bracket And Mounting Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screw connection.

Installation:

For tightening torque refer to 18 20 3AZ in 18 20 EXHAUST SYSTEM SUSPENSION .

Fig 6: Bracket Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Release bolts along line and remove reinforcement plate (1).

Lower front muffler and remove.

Fig 7: Reinforcement Plate

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Connect front muffler to rear muffler by means of clamp and align.

Centre clamp and tighten down.

For tightening torque refer to 18 20 8AZ in 18 20 EXHAUST SYSTEM SUSPENSION .

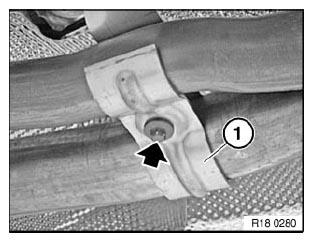

Fig 8: Muffler Connection Clamp

Courtesy of BMW OF NORTH AMERICA, INC.
