Arrangement of flushing device for transmissions A5S 310Z, A5S 560Z, A5S 360R/390R, A4S 200R, A5S 325Z, GA6HP26Z

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

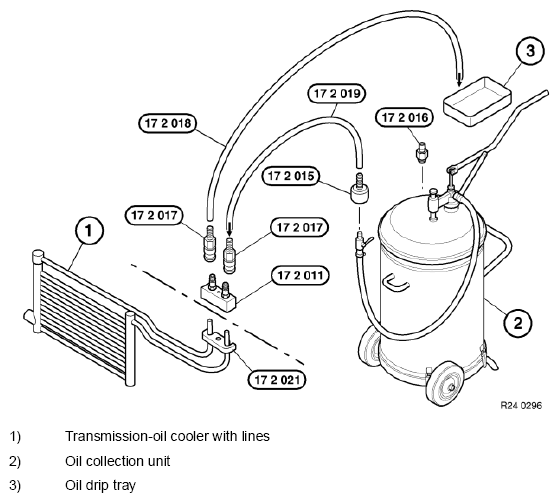

Fig 1: Arrangement Of Flushing Device For Transmissions (A5S 310Z, A5S 560Z)

Courtesy of BMW OF NORTH AMERICA, INC.

17 2 011 Adapter for connecting transmission-side oil cooler lines (1)

17 2 015 Connection for oil collection unit (2), manufacturer: Deutsche Tecalemit

17 2 016 Connection for oil collection unit (2), manufacturer: Horn

17 2 017 Quick-release coupling (2 pieces)

17 2 018 Hose to oil drip tray (3)

17 2 019 Hose to oil collection unit (2)

17 2 021 Mounting plate for adapter 17 2 011 for transmissions A5S 325Z, GA6HP26Z
