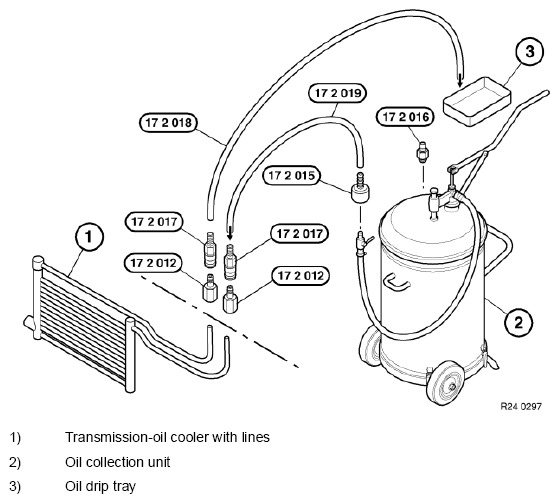

Arrangement of flushing device for transmissions A4S 310R
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.
17 2 012 Adapters (2 x) for connecting transmission-side oil cooler lines (1)
17 2 015 Connection for oil collection unit (2), manufacturer: Deutsche Tecalemit or
17 2 016 Connection for oil collection unit (2), manufacturer: Horn
17 2 017 Quick-release coupling (2 pieces)
17 2 018 Hose to oil drip tray (3)
17 2 019 Hose to oil collection unit (2)
