17 11 046 Removing and installing / replacing module carrier

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove coolant cooler
If necessary, slacken power steering cooling coil; refer to Removing power steering cooling coil
If necessary, slacken A/C condenser and secure against damage and against falling down. Refer to Remove A/C Condenser.

Release damping pieces.

Fig 1: Dampening Piece Mounting Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock (1) and remove holder (2) downwards.

Illustration shows the left holder: The same procedure applies to the opposite side.

Installation:

Rubber mounts fall out easily, ensure correct installation position.

S65 only: Engine oil cooler loose, see Removing oil cooler.

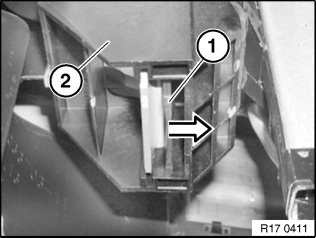

Fig 2: Lock, Holder And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.

Remove module carrier (1) individually towards bottom.

Fig 3: Identifying Module Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

When replacing module carrier:

Convert power steering Cooling Loop.
