16 11 350 Replacing clamping bands for fuel tank

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Partially detach Underbody Panelling

IMPORTANT: Secure fuel tank against slipping and falling out.

Heavily support the fuel tank.

Fig 1: Supporting Fuel Tank

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and remove clamping band.

Installation:

For tightening torque refer to 16 11 2AZ in 16 11 FUEL TANK AND MOUNTING PARTS .

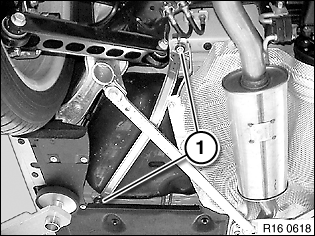

Fig 2: Clamping Band Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.
