16 11 060 Removing and installing or replacing fuel filler pipe

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Unhook retaining strap (1) from tank flap.

Open cap and set to one side.

Fig 1: Retaining Strap

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: There may still be residual amounts of fuel in the tank.
Catch and dispose of escaping fuel.

Unfasten hose clip (1).

Detach fuel filler hose from fuel filler pipe.

Installation:

Replace hose clip.

Tightening torque: see 1AZ in 16 12 FUEL DELIVERY .

Fig 2: Identifying Hose Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

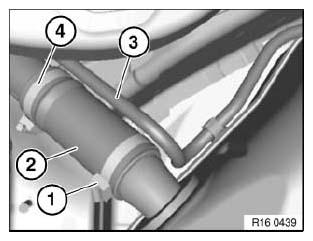

Unfasten hose clip (1).

Installation:

Replace hose clip.

For tightening torque refer to 16 12 1AZ in 16 12 FUEL DELIVERY .

Fig 3: Hose Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock quick-release fastener (1) and detach vent hose (2).

Unscrew nut (3).

Fig 4: Quick-Release Fastener, Nut And Vent Hose

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (1).

Installation:

For tightening torque refer to 16 12 2AZ in 16 12 FUEL DELIVERY .

Withdraw fuel filler pipe (2) completely out of rubber gaiter at wheel arch and feed out.

Installation:

Make sure rubber gaiter is correctly seated.

Fig 5: Fuel Filler Pipe And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clean contact surface on body and grounding lead on fuel filler pipe.

Ground connection must be guaranteed.
