16 14 500 Removing and installing or replacing control unit for electric fuel pump (convertible)

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with NOTES ON PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks:

Remove BACKREST

Replacement:

Carry out PROGRAMMING/CODING

Release nuts (1) and remove holder (2).

Fig 1: Identifying Holder And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connections (1) and disconnect.

Release nuts (2) and remove control unit.

Installation:

Tightening torque: see 2AZ in 16 14 FUEL PUMP .

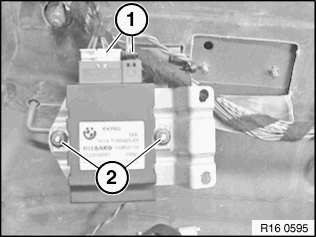

Fig 2: Identifying Nuts And Connectors

Courtesy of BMW OF NORTH AMERICA, INC.
