16 14 070 Removing and installing/replacing vent hose with strainer for carbon canister (coupe)
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove Cover For Carbon Canister
- Remove Rear Right Wheel Arch Cover

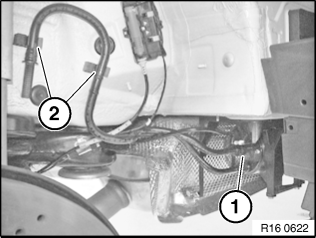

Release quick-release coupling (1) and detach vent hose.
Carefully press vent hose out of clamps (2).
Installation:
Quick-release coupling (1) must audibly snap into place.
Check locking of quick-release coupling by pulling, do not actuate release element in the process.
