13 53 240 Replacing complete injection pipe (N51)

Necessary preliminary tasks:

• Read out fault memory of DME control unit
• Switch off ignition
• Remove ACOUSTIC COVER

Recycling

Fuel escapes when fuel line is detached. Catch and dispose of escaping fuel.

Observe country-specific waste-disposal regulations.

Remove protective cap from compressed air valve.

Fig 1: Dust Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Connect compressed air line (1) to compressed air valve.

Blow fuel back into tank with a short blast of compressed air (max. 3 bar).

Fig 2: Compressed Air Line

Courtesy of BMW OF NORTH AMERICA, INC.

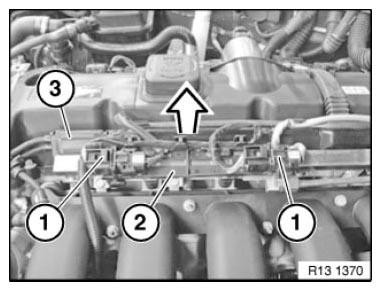

Unclip plug connection (1) from holder (2) and disconnect.

Unclip wiring harnesses from holder (2) and connector strip (3).

Disconnect holder (2) from injection pipe.

Detach connector strip (3) in direction of arrow.

Fig 3: Removing Connector Strip

Courtesy of BMW OF NORTH AMERICA, INC.

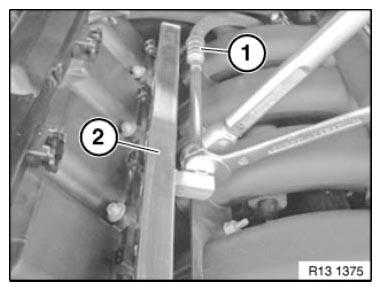

Release fuel line (1).

Tightening torque 13 53 11AZ .

Fig 4: Identifying Fuel Line And Fuel Rail

Courtesy of BMW OF NORTH AMERICA, INC.

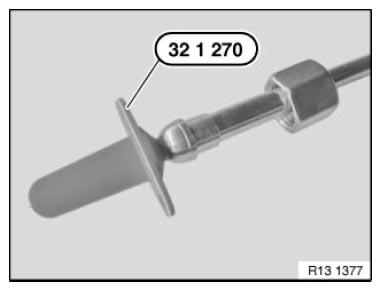

Seal fuel hose with special tool 32 1 270 .

Fig 5: Sealing Fuel Hose Using Special Tool (32 1 270)

Courtesy of BMW OF NORTH AMERICA, INC.

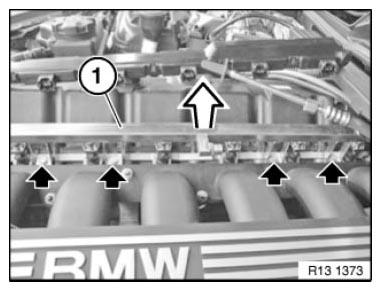

Release screws.

Tightening torque 13 53 2AZ .

Remove injection pipe (1).

Fig 6: Removing Injection Pipe

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out retainers (1).

Pull fuel injectors out of injection pipe.

Installation:

Replace sealing rings on fuel injectors and coat with antifriction rubber coating.

Fig 7: Fuel Injector Retainer And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.
