Removal & Installation
WARNING: This page is about a different car, the 2003 BMW 760Li, 2003 BMW 745i, and 2003 BMW 745Li. However, it is still accessible from the selected car via links, so may be relevant.
- Before proceeding, see AIR BAG SAFETY PRECAUTIONS . Disable air bag system. See DISABLING SYSTEM under DISABLING & ACTIVATING AIR BAG SYSTEM.
- Remove front door scuff plate. Remove screw and pull forward air duct nozzle out of B-pillar trim panel. Remove 2 screws located inside air duct nozzle opening. Detach door weatherstrip from B-pillar trim panel and pull trim panel out.

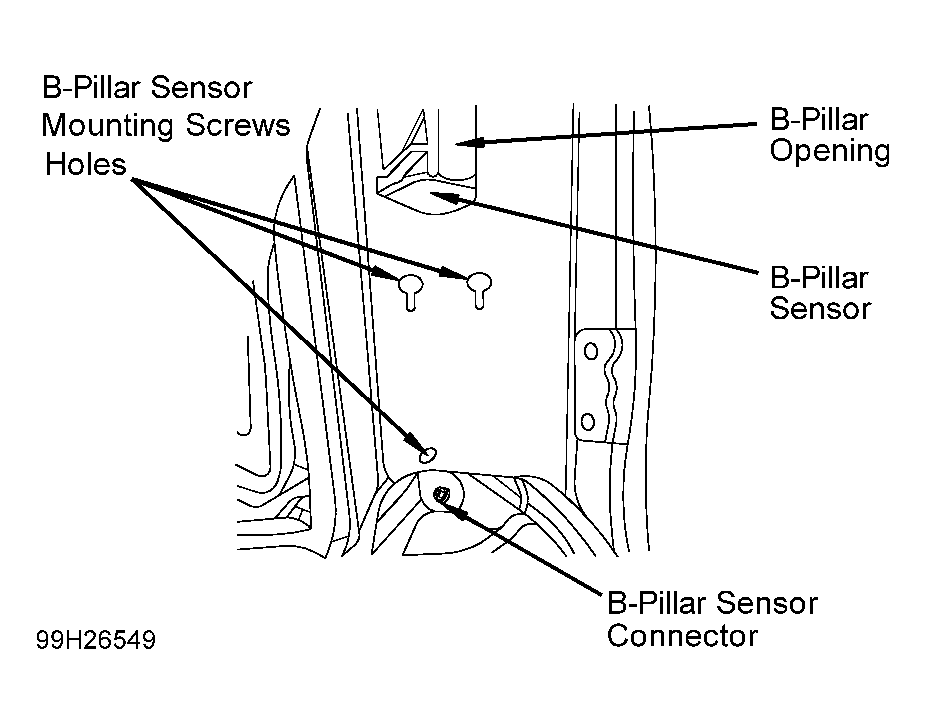

- Loosen 2 top B-pillar sensor mounting screws and remove bottom screw. See Fig 1 . Lower sensor and disconnect harness connector. Feed B-pillar sensor up through opening in B-pillar and remove from vehicle.
- To install, reverse removal procedure. Ensure sensor is securely mounted. Tighten screws to specification. See TORQUE SPECIFICATIONS . Replace damaged trim panel trim clips. Activate air bag system. See ACTIVATING SYSTEM under DISABLING & ACTIVATING AIR BAG SYSTEM.
