23 4 000 Drift set

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2008 BMW 328xi, 2008 BMW 328i, 2008 BMW 323i, 2007 BMW 328xi, and 2007 BMW 328i. However, it is still accessible from the selected car via links, so may be relevant.

Minimum set: Mechanical tools

In conjunction with: 00 5 500

Note: For driving shaft seal into transmission

Transmission: GS6-85BG

Storage location: A49, B84

SI number: 1 02 02 (823)

Order number: 23 4 000

Drift set

Consisting of:

1 = 23 4 001 Drift dia. 67 mm

2 = 23 4 002 Drift dia. 53 mm

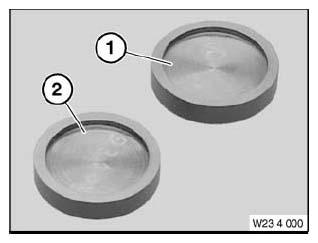

Fig 1: Identifying Special Tool (23 4 000) Components
G04739303Courtesy of BMW OF NORTH AMERICA, INC.
