23 0 130 Take-up support for transmission

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2008 BMW 328xi, 2008 BMW 328i, 2008 BMW 323i, 2007 BMW 328xi, and 2007 BMW 328i. However, it is still accessible from the selected car via links, so may be relevant.

In conjunction with: 00 2 030

Note: For accommodating transmission removal and installation.

Series: E39, E46, E52, E53, E60, E61, E63, E64, E65, E66, E67, E70, E83, E85, E86, E87, E90, E91, E92, E93

Transmission: GS6-17BG, GS6-37BZ, GS6-37DZ GS6-53BZ, GS6-53DZ, GS7S47B S5D 280Z, S5D 320Z

SI number: 1 06 00 (575)

Order number: 23 0 130

Take-up support for transmission

Consisting of:

1 = 23 0 131 Basic body

2 = 23 0 132 Adjusting unit

3 = 23 0 133 Take-up support

Note: Transmission: S5D 280Z in

4 = 23 0 134 Take-up support

Note: Transmission: GS6-37BZ (H-transmission), GS6-17BG (i-transmission)

5 = 23 0 135 Take-up support

Note: Transmission: GS6-37BZ, G 53BZ SMG H-SMG

In conjunction with: 23 0 131 / 132 23 0 134 (front take-up support)

6 = 23 0 136 Take-up support

Note: Transmission: GS6-53BZ, G 53DZ

7 = 23 0 137 Take-up support

Note: Transmission: GS6 37BZ, G 37DZ (H-transmission) in E87, E90.

In conjunction with: 23 0 131 /132 136

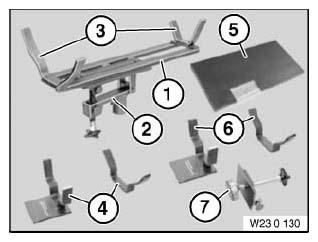

Fig 1: Identifying Special Tool (23 0 130) Components And Assembly

Courtesy of BMW OF NORTH AMERICA, INC.

23 0 138 Take-up support

Note: Transmission: GS6 37DZ (H transmission) in E83/M47TU.

In conjunction with: 23 0 131 / 132

23 0 139 Take-up support

Note: Transmission: GS7S47BG in E60/S85 (M5)

In conjunction with: 23 0 131 / 132
