22 1 010 Set of tools

WARNING: This page is about a different car, the 2006 BMW 330xi, 2006 BMW 330i, 2006 BMW 325xi, 2006 BMW 325i, and 2006 BMW 323i. However, it is still accessible from the selected car via links, so may be relevant.

Minimum set: Mechanical tools

In conjunction with: 33 3 144

Note: For removing and installing transfer box rubber mount 22 1 018 for E67 and RR

Series: E46/16, E53, E60, E61, E67, E70, E83, E90, E91, E92, RR1

Storage location: B41, C34, C35, C47

SI number: 1 15 99 (483)

Order number: 22 1 010

Set of tools

Consisting of:

3 = 22 1 013 Thrust piece

Note: For installing transfer case rubber mount - model series: E53

4 = 22 1 014 Thrust piece

Note: For installing transfer box rubber mount - model series: E46/16, E83

5 = 22 1 015 Washer

Note: Model series: E46/16

6 = 22 1 016 Bridge

Note: For removing transfer box rubber mount. Model series: E46/16, E83

7 = 22 1 017 Nut

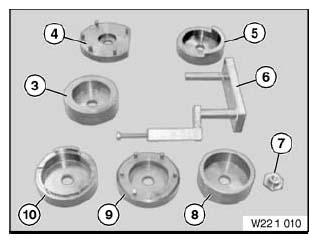

Fig 1: Identifying Set Of Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Note: For installing and removing transfer box rubber mount - model series: E46/16

8 = 22 1 018 Sleeve

Note: For removing transfer box rubber mount - model series: E53, E83, E90

9 = 22 1 019 Washer

Note: For installing transfer box rubber mount - Model series: E53

10 = 22 1021 Washer

Note: For installing rubber mount in transfer box: ATC400 Model series: E83
