Contact Ring

WARNING: This page is about a different car, the 2003 BMW M5, 2003 BMW 540i, 2003 BMW 530i, and 2003 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

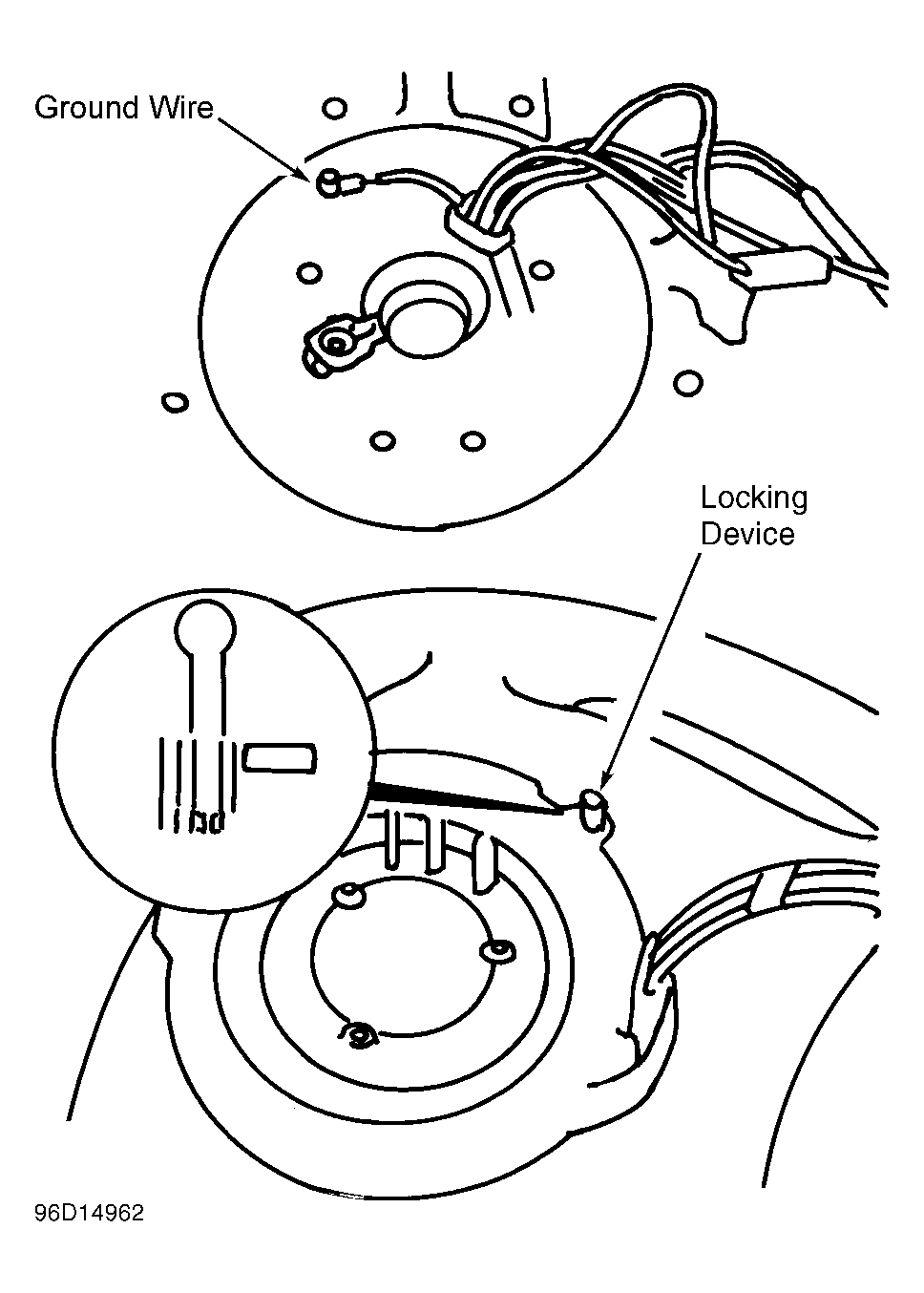

Ensure front wheels are in straight-ahead position. Press down locking device in steering wheel hub center and hold down. See Figure . On bottom side of steering wheel, turn contact ring all the way either clockwise or counterclockwise until it stops. Turn contact ring back about 3 turns until arrows align. See Fig 1 . Release locking device. Contact ring is now in center position.

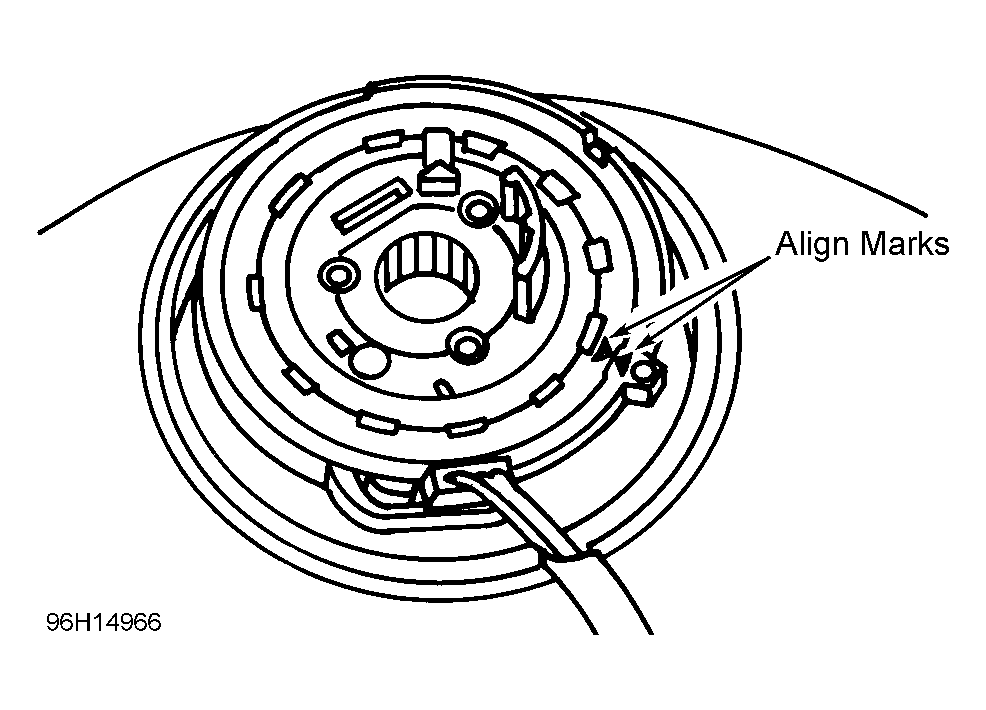

Fig 1: Adjusting Contact Ring Align Marks
G96H14966Courtesy of BMW OF NORTH AMERICA, INC.
