11 37 030 Removing and installing/replacing eccentric shaft sensor (N52)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2007 BMW 530xi, 2007 BMW 530i, and 2007 BMW 525xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove Cylinder Head Cover .

IMPORTANT: All bolts are secured against falling out, release bolts (2) on cylinder head only but do not unscrew fully.

Bolts (2) can fall out.

Risk of damage to timing chain drive.

Release screws (2).

Lift out sensor (1).

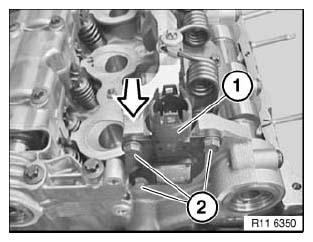

Fig 1: Identifying Cylinder Head Bolts And Eccentric Shaft Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Illustrations show timing chain removed.

Assemble engine.
