11 37 005 Removing and installing/replacing eccentric shaft (N52)

Special tools required:

• 11 4 481

Necessary preliminary tasks:

• Remove Cylinder Head Cover .
• Remove Intermediate Lever .

If necessary, move eccentric shaft (1) on twin surface to minimum lift (2).

Fig 1: Identifying Eccentric Shaft And Lift

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws on bearing cap number (1).

Release screws on all bearing caps (2).

All bearing caps are identified with numbers; set caps down in special tool 11 4 481 in a tidy and orderly fashion.

Remove intermediate shaft with a light tilting and rotating motion.

Fig 2: Identifying Bearing Cap And Number

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw and remove magnet wheel (1).

Fig 3: Identifying Magnet Wheel

Courtesy of BMW OF NORTH AMERICA, INC.

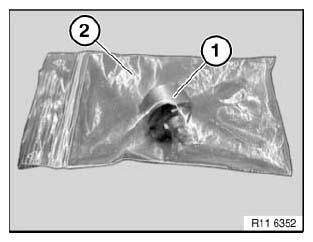

Fig 4: Identifying Magnet Wheel And Plastic Bag

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully press needle bearing (1) apart at split position only to such an extent that it can be removed from eccentric shaft.

Fig 5: Identifying Needle Bearing

Courtesy of BMW OF NORTH AMERICA, INC.

Install bearing shells (1) in such a way that ends of bearing shells (1) face each other as shown in Fig 6.

Fig 6: Identifying Bearing Shells

Courtesy of BMW OF NORTH AMERICA, INC.

Install bearing shell (1) with tip facing down (see arrow in Fig 7) in cylinder head.

Install bearing shell (2) with tip facing up in bearing cap.

Fig 7: Identifying Bearing Shell Installation Orientation

Courtesy of BMW OF NORTH AMERICA, INC.

Install eccentric shaft and set to minimum lift.

Bearing cap number 6 (1) is provided with a stop.

All bearing caps (2) are identified with numbers from 1 to 5.

For tightening torque refer to 11 37 7AZ in 11 37 VARIABLE VALVE GEAR (N52) .

Fig 8: Identifying Bearing Caps And Bearing Cap Number

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
