11 22 513 Replacing roller bearing for dualmass flywheel manually

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2007 BMW 530xi, 2007 BMW 530i, and 2007 BMW 525xi. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 5 500
11 2 010
11 2 343
11 2 350

NOTE: Flywheel removed!

Position special tool 11 2 010 in roller bearing.

Twist out roller bearing with special tool 11 2 343.

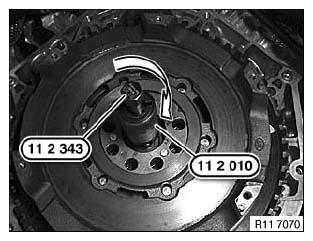

Fig 1: Identifying Special Tool (11 2 010) And (11 2 343)

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble special tools 11 2 350 and 00 5 500.

Drive in roller bearing with special tools 11 2 350 and 00 5 500 in direction of arrow as far as it will go.

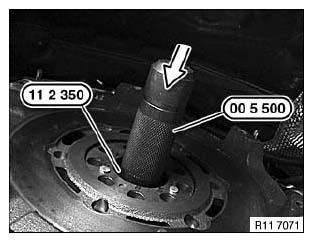

Fig 2: Identifying Special Tool (11 2 350) And (00 5 500)

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
