11 12 719 Resurfacing cylinder head sealing face (N52)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2007 BMW 530xi, 2007 BMW 530i, and 2007 BMW 525xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove Cylinder Head.
Remove Exhaust Camshaft.
Remove Intermediate Lever on inlet side.

Check evenness of cylinder head sealing faces with a standard straight-edge (1).

NOTE: Max. deviation from level (longitudinal) 0.10 mm

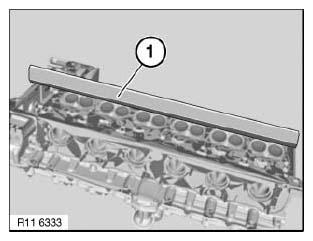

Fig 1: Identifying Evenness Of Cylinder Head Sealing Faces Using Standard Straight-Edge

Courtesy of BMW OF NORTH AMERICA, INC.

Check evenness of cylinder head sealing faces with a standard straight-edge (1).

NOTE: Max. deviation from level (transversal) 0.05 mm

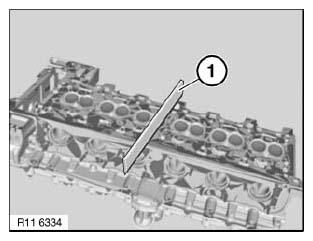

Fig 2: Identifying Evenness Of Cylinder Head Sealing Faces Using Standard Straight-Edge

Courtesy of BMW OF NORTH AMERICA, INC.

Check cylinder head for Water Leaks.

Assemble engine.
