11 12 595 Checking a valve guide for wear (N52)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2007 BMW 530xi, 2007 BMW 530i, and 2007 BMW 525xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove All Valve Springs.

To measure tilt clearance, install a new valve so that end of valve stem is flush with valve guide.

Attach dial gauge and measure tilt clearance.

NOTE: See illustration in Fig 1.

Max. permissible tilt clearance 0.5 mm.

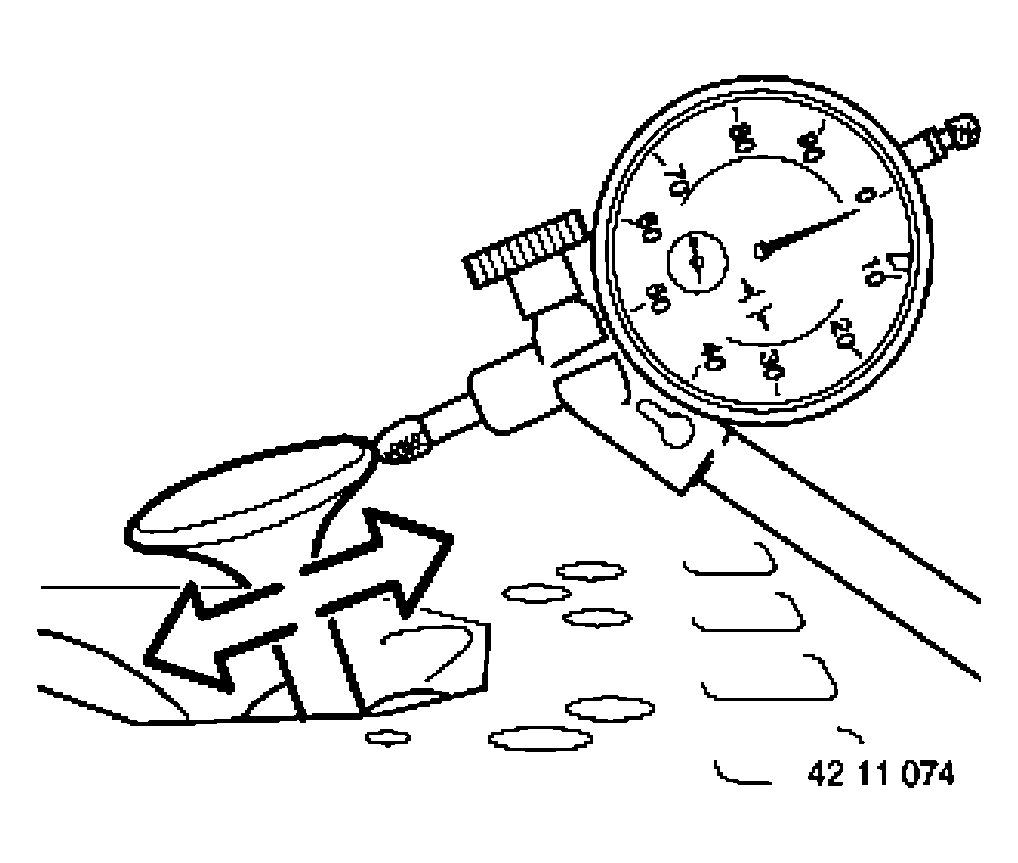

Fig 1: Measuring Tilt Clearance Using Dial Gauge

Courtesy of BMW OF NORTH AMERICA, INC.

Is the valve guide is outside the tolerance, the cylinder head must be replaced.

Assemble engine.
