13 54 250 Replacing air intake hose (N52/N52K/N53)

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2008 BMW 328xi, 2008 BMW 328i, 2008 BMW 323i, 2007 BMW 328xi, and 2007 BMW 328i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Switch off ignition
Remove Lower Section Of Microfilter Housing
Remove Intake Filter Housing

Unfasten clip.

Detach air-mass flow sensor (1) from throttle valve assembly.

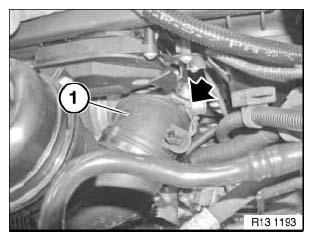

Fig 1: Identifying Air-Mass Flow Sensor And Throttle Valve Assembly

Courtesy of BMW OF NORTH AMERICA, INC.
