17 22 010 Removing and installing/replacing heat exchanger for automatic transmission
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2008 BMW 328xi, 2008 BMW 328i, 2008 BMW 323i, 2007 BMW 328xi, and 2007 BMW 328i. However, it is still accessible from the selected car via links, so may be relevant.
Recycling
Transmission fluid emerges when oil lines are detached from heat exchanger.
Catch and dispose of escaping transmission fluid.
Observe country-specific waste-disposal regulations.
IMPORTANT:
Check fluid level in automatic transmission, refer to 4.0 CHECKING TRANSMISSION FLUID LEVEL
.

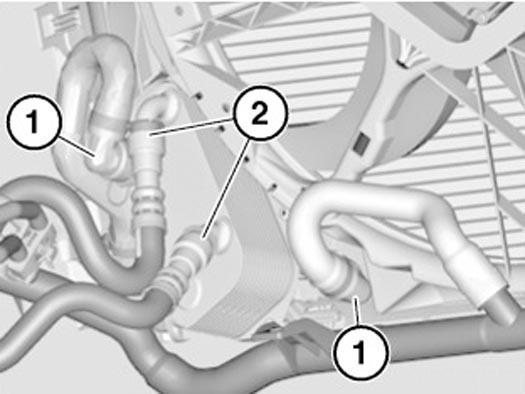

Press lines (1/2) in direction of heat exchanger and pull locking ring towards rear.
Keep locking ring pressed and detach lines (1/2) from heat exchanger.
Release screw on heat exchanger.
