22 11 100 Replacing right engine support arm (N51/N52)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2006 BMW 330xi, and 2006 BMW 330i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove right engine mount.

Unfasten screws.

Remove engine support arm from engine.

Installation:

Aluminium screws/bolts must be replaced.

Tightening torque 22 11 3AZ

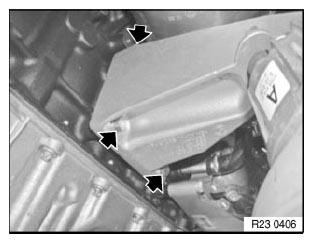

Fig 1: Locating Engine Support Arm From Engine

Courtesy of BMW OF NORTH AMERICA, INC.
