24 34 562 Replacing mechatronics (GA6HP19Z)

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2008 BMW 328xi, 2008 BMW 328i, 2008 BMW 323i, 2007 BMW 328xi, and 2007 BMW 328i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

24 2 390

NOTE: After completing work:

Load specific data version with DIS.

IMPORTANT: After completion of work, check Transmission Oil Level .

Use only approved Transmission Fluid .

Failure to comply with this requirement will result in serious damage to the automatic transmission!

IMPORTANT: Read and comply with Notes On Protection Against Electrostatic Damage (ESD Protection) .

Necessary preliminary tasks:

Remove heat shield on right.
Support automatic transmission with hydraulic lifter.
Remove Transmission Cross-Member .

NOTE: Version 1:

Grip clamping sleeve (1) and slacken nut (2).

Detach retainer (3) towards bottom using a screwdriver.

Pull cable (4) out of holder.

Installation:

Adjust Selector Lever.

Fig 1: Identifying Transmission Cable, Clamping Sleeve, Slacken Nut And Retainer

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Version 2:

Release screw (1).

Remove clamp (2).

Release shift cable head (3) using a screwdriver from ball head of shift cable lever.

Installation:

Adjust Selector Lever.

Fig 2: Identifying Shift Cable Head, Screw And Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Version 3:

Unfasten nut.

Remove cable (1).

Installation:

Adjusting cable:

Release nut
Adjust cable by means of holder (2) until spacing A = 1 mm is obtained
Tighten down nut

Fig 3: Identifying Transmission Cable And Holder
Courtesy of BMW OF NORTH AMERICA, INC.

Secure lever (1) with a cable tie (2) or wire in vertical position.

NOTE: E65 only.

Fig 4: Identifying Selector Lever And Cable Tie

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Mechatronics can be destroyed by static discharges.

Therefore the contacts inside the plug must not be touched. Insert special tool immediately after work step.

Unscrew plug (1) and disconnect.

Fig 5: Disconnecting Plug With Turning

Courtesy of BMW OF NORTH AMERICA, INC.

Insert special tool 24 2 390 in sealing sleeve (1).

Fig 6: Identifying Special Tool (24 2 390) And Sealing Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.

Remove Transmission Oil Sump .

Unlock sealing sleeve with slide (1).

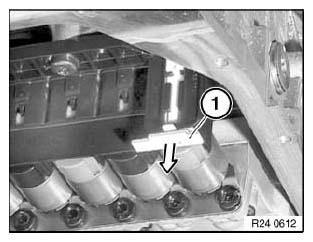

Fig 7: Using Slide To Unlock Transmission Sealing Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.

Note position of sealing sleeve.

Pull out sealing sleeve (1).

Installation:

Screw in sealing sleeve partially (lug in upper area). Turn until lug engages in groove of transmission. Slide in sealing sleeve.

Lug on sealing sleeve must not be damaged!

Fig 8: Identifying Transmission Sealing Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: GA6HP19Z

Release all screws (1 and 2).

1 = M6 x 58 mm
2 = M6 x 20 mm

Remove mechatronics.

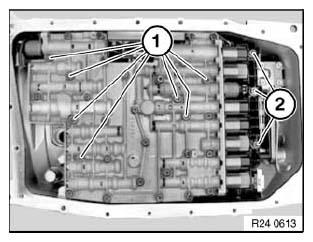

Fig 9: Identifying Mechatronics And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: GA6HP19Z TU

Release all screws (1 and 2).

1 = M6 x 58 mm
2 = M6 x 20 mm

Remove mechatronics.

Fig 10: Identifying Mechatronics And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Only installed in E65!

Mechatronics without protective bar for solenoid valve must not be reused after removal.

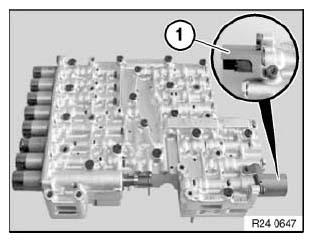

Fig 11: Identifying Mechatronics Without Protective Bar For Solenoid Valve

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Only installed in E65!

Fit/reuse only mechatronics with protective bar (1) for solenoid valve.

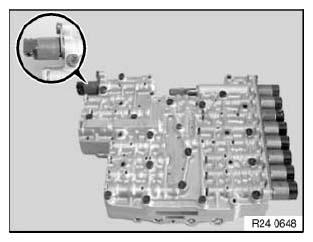

Fig 12: Identifying Mechatronics With Protective Bar For Solenoid Valve

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check gaskets (1 and 2) for damage, replace gaskets if necessary.

Coat new seals with automatic transmission fluid and install.

Fig 13: Identifying Automatic Transmission Gasket Seals

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert screws (3) alternately until contact is made with each screw head.

Insert all further screws contact is made with each screw head.

Fig 14: Identifying Transmission Screws

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT:

Tighten down screws in order 1...10.

Failure to comply with this requirement will result in serious damage to the automatic transmission!

For tightening torque refer to 24 30 1AZ in 24 30 HYDRAULIC / ELECTRIC CONTROL PARTS AND CONTROLLING ELEMENTS .

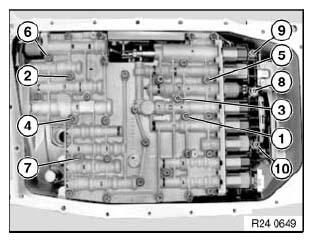

Fig 15: Automatic Transmission Valve Body (Mechatronics) Screws Tightening/Loosening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.
