24 14 002 Replacing shaft seal for selector shaft (GA6HP19Z)

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2008 BMW 328xi, 2008 BMW 328i, 2008 BMW 323i, 2007 BMW 328xi, and 2007 BMW 328i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

24 5 361
24 5 362
24 5 364
24 5 366

IMPORTANT: After completion of work, check Transmission Fluid Level .

Use only the approved Transmission Fluid .

Failure to comply with this requirement will result in serious damage to the automatic transmission!

Necessary preliminary tasks:

Remove heat shields

NOTE: Version 1:

Grip clamping sleeve (1) and slacken nut (2).

Detach retainer (3) downwards using a screwdriver.

Pull cable (4) out of holder.

Installation:

Adjust Selector Lever.

Fig 1: Identifying Transmission Cable, Clamping Sleeve, Nut And Retainer

G04726075

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Version 2:

Release shift cable head (1) from ball head.

Installation:

Adjust Selector Lever.

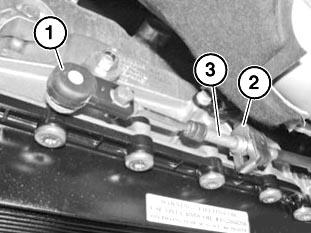

Fig 2: Identifying Transmission Shift Cable Head And Ball Head

G00453107

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nut (1).

Take off holder (2).

For tightening torque refer to 24 51 1AZ in 24 51 EXTERNAL SHIFT LINKAGE .

Fig 3: Identifying Transmission Holder And Nut

G04726123

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: E90/E91 AWD only.

Release shift cable head (2) from ball head.

Installation:

Adjust selector lever

Fig 4: Releasing Shift Cable Head From Ball Head

G04726124

Courtesy of BMW OF NORTH AMERICA, INC.

Screw in special tool 24 5 361 until it is firmly connected with shaft seal.

Fig 5: Identifying Special Tool (24 5 361)

G04726125

Courtesy of BMW OF NORTH AMERICA, INC.

Screw special tool 24 5 362 onto special tool 24 5 361 and tighten down.

This pulls the shaft seal out of the transmission housing.

Fig 6: Identifying Special Tool (24 5 362) And (24 5 361)

G04726126

Courtesy of BMW OF NORTH AMERICA, INC.

Oil sealing lip on shaft seal (1).

Screw in shaft seal (1) with special tools 24 5 366 and 24 5 364 as far as it will go.

Fig 7: Identifying Transmission Shaft Seal, Special Tool (24 5 366) And (24 5 364)

G04726127

Courtesy of BMW OF NORTH AMERICA, INC.
