25 16 056 Removing and installing or replacing shift tower (Steptronic)

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2008 BMW 323i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear underbody protection.
Remove centre console.

NOTE: Version 1:

Move selector lever to parking position "P".

Grip clamping sleeve (1) and slacken nut (2).

Installation:

Adjust Selector Lever .

Fig 1: Identifying Clamping Sleeve And Slacken Nut

G04726193

Courtesy of BMW OF NORTH AMERICA, INC.

Detach retainer (3) downwards using a screwdriver.

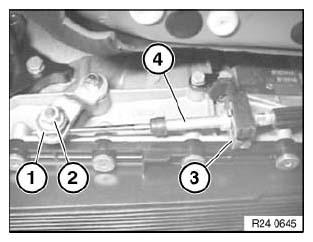

Fig 2: Identifying Shift Cable Retainer

G04726195

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Version 2:

Move selector lever to "P" position.

Release screw (1).

For tightening torque refer to 25 16 1AZ in 25 16 SHIFT CONSOLE - AUTOMATIC TRANSMISSION .

Remove clamp (2).

Release shift cable head (3) using a screwdriver from ball head of shift cable lever

Installation:

Adjust Selector Lever .

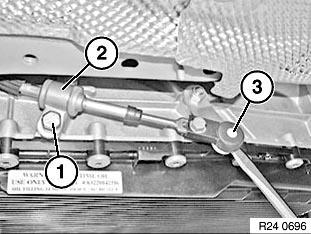

Fig 3: Identifying Shift Tower Release Screw, Clamp And Shift Cable Head

G00453091

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Version 3:

Release nut and disengage cable (1).

Installation:

Unfasten nut.

Adjust cable by means of holder (2) until spacing A = 1 mm is obtained

Tighten nut.

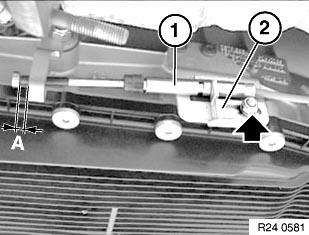

Fig 4: Identifying Shift Cable, Holder And Release Nut

G00453092

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

For tightening torque refer to 25 16 3AZ in 25 16 SHIFT CONSOLE - AUTOMATIC TRANSMISSION .

Disconnect plug connections (2).

Remove cables from holders.

Lift shift tower out of centre console.

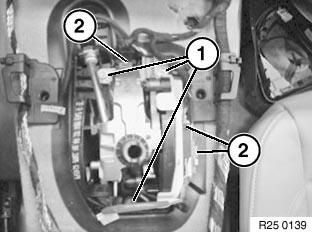

Fig 5: Release Screws And Disconnect Plug Connectors

G00453093

Courtesy of BMW OF NORTH AMERICA, INC.
