25 11 245 Replacing shift arm support bearing

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2008 BMW 323i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove reinforcement carrier.
Remove Rear Underbody Protection .
Release middle heat shield, do not remove.

NOTE: Only if heat shield has to be released.

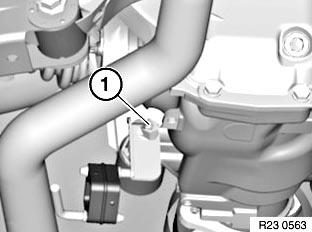

Release nut (1) and remove bracket from rear differential.

Slide heat shield towards rear.

Fig 1: Identifying Rear Differential Bracket Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Lever support bearing (1) with a short screwdriver out of mounting.

Pull support off shift arm.

Fig 2: Lever Support Bearing Out Of Mounting

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Grease bearing pin of shift arm.

Fit support bearing (1) with opening (2) towards top rear onto mounting.

Fig 3: Fit Support Bearing With Opening Toward Top Rear Onto Mounting

Courtesy of BMW OF NORTH AMERICA, INC.
