25 11 101 Replacing shift rod

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2008 BMW 323i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear assembly underside protection
Remove heat shields
Remove transfer case (AWD)

Detach locking clip.

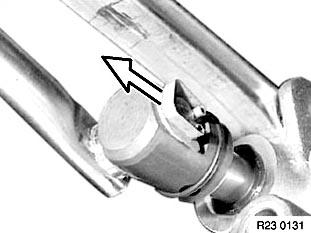

Fig 1: Detaching Shift Rod Locking Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Pull shift rod (1) out of shift rod joint (2).

Installation:

Grease shift rod pin (3).

Fig 2: Removing Shift Rod Out Of Joint And Exposing Rod Pin

Courtesy of BMW OF NORTH AMERICA, INC.

Detach locking clip (1).

Remove selector rod (2).

Installation:

Grease Grease selector rod pin.

Fig 3: Identifying Locking Pin And Selector Rod

Courtesy of BMW OF NORTH AMERICA, INC.
