00...... Raising vehicle with trolley jack

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2008 BMW 323i. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: Observe the following trolley-jack-related instructions:
  1. Use only BMW-distributed/approved trolley jacks which have rubber plate contact points.
  2. Trolley jacks must be regularly serviced and always checked for functional reliability before they are used!
  3. Check the rubber plate on the trolley jack prior to each replacing if necessary.

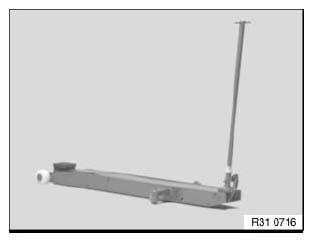

    Fig 1: Identifying Trolley Jack
    G04726316Courtesy of BMW OF NORTH AMERICA, INC.
WARNING: The vehicle may be raised with a trolley jack only at the following jacking points!
  1. Car jacking point on reinforcement strut (rear-wheel drive)
  2. Side car jacking points
  3. Rear differential

    Risk of damage: It is not permitted to raise the vehicle at the rear differential cover!

    Fig 2: Identifying Car Jacking Point On Reinforcement Strut (Rear-Wheel Drive)
    G04725308Courtesy of BMW OF NORTH AMERICA, INC.
    1. Car jacking point on front axle carrier (all-wheel drive)

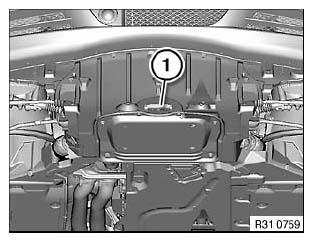

      Fig 3: Identifying Car Jacking Point On Front Axle Carrier (All-Wheel Drive)
      G04726318Courtesy of BMW OF NORTH AMERICA, INC.
