34 31 ... Overview of brake master cylinder / brake booster

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2008 BMW 323i. However, it is still accessible from the selected car via links, so may be relevant.

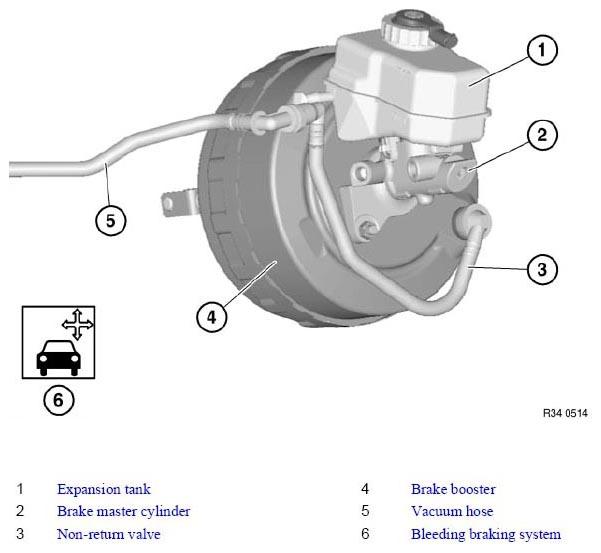

Fig 1: Identifying Master Brake Cylinder Components Location
G04726648Courtesy of BMW OF NORTH AMERICA, INC.
