34 00 050 Bleeding brake system with DSC

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2008 BMW 323i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Read And Comply With General Information.

When replacing or repairing, observe the filling and bleeding instructions for the following parts:

Tandem brake master cylinder
Hydraulic unit
Components and connecting lines which are fitted between these assemblies.

Connect bleeder unit with max. 2 bar filling pressure.

A second person is needed to help carry out this work.

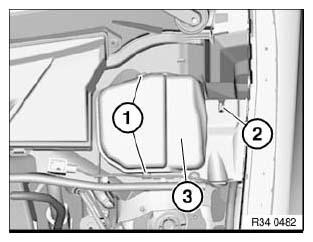

Unclip retaining tabs (1).

Pull cover (3) out of guide (2) and remove.

Fig 1: Identifying Brake System Retaining Tabs, Cover And Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Connect DIS.

Select path: Service functions - Chassis/Suspension - Slip control systems - Bleeding procedure.

Connect brake fluid changer to expansion tank and switch on.

IMPORTANT: Check relevant Operating Instructions for each device.

Charging pressure should not exceed 2 bar.

Fig 2: Identifying Brake Fluid Changer

Courtesy of BMW OF NORTH AMERICA, INC.

Flushing brake system completely

Connect bleeder hose with collecting tray to bleeder valve on rear right brake caliper.

Open bleeder valve and purge until clear, bubble-free brake fluid emerges.

Close bleed valve.

Follow same procedure on rear left, front right and front left wheel brake.

Fig 3: Identifying Rear Right Brake Caliper Bleeder Valve

Courtesy of BMW OF NORTH AMERICA, INC.

Bleeding rear-axle brake circuit

Connect bleeder hose with collecting tray to bleeder valve on rear right brake caliper.

Close bleeder valve.

Run bleeding routine with DIS with bleeder valve open.

After completing routine, press brake pedal 5 times to floor; clear and bubble-free brake fluid must flow out.

Close bleed valve.

Repeat procedure at rear left.

Fig 4: Identifying Rear Right Brake Caliper Bleeder Valve

Courtesy of BMW OF NORTH AMERICA, INC.

Bleeding front-axle brake circuit

Connect bleeder hose with collecting tray to bleeder valve on front right brake caliper.

Close bleeder valve.

Run bleeding routine with DIS with bleeder valve open.

After completing routine, press brake pedal 5 times to floor, clear and bubble-free brake fluid must flow out.

Close bleed valve.

Repeat procedure at front left.

Fig 5: Identifying Front Right Brake Caliper Bleeder Valve

Courtesy of BMW OF NORTH AMERICA, INC.

Switch off brake fluid changer and remove from expansion tank.

Check brake fluid level.

Close expansion tank.

NOTE: Pay attention to rubber seal (1) in sealing cap.

Fig 6: Identifying Expansion Tank, Brake Fluid Level And Sealing Cap Rubber Seal

Courtesy of BMW OF NORTH AMERICA, INC.
