Removing wheel electronics

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2008 BMW 323i. However, it is still accessible from the selected car via links, so may be relevant.

Release Torx socket crew (1) and remove wheel electronics (2).

Fig 1: Identifying Torx Socket Crew And Wheel Electronics
G04726747Courtesy of BMW OF NORTH AMERICA, INC.

Release union nut with special tool 00 2 190; if necessary, grip valve insert (1) at cylindrical section of ball head.

Remove valve insert from rim.

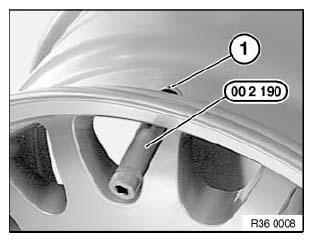

Fig 2: Using Special Tool (00 2 190 ) To Release Union Nut At Valve Insert
G04726748Courtesy of BMW OF NORTH AMERICA, INC.

Remove washer (1).

Fig 3: Identifying Wheel Valve Washer
G04726749Courtesy of BMW OF NORTH AMERICA, INC.
