41 35 101 Rear Left Side Panel Replacement (Partial Replacement, Longitudinal Member Cover Before B-Pillar)

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

Read contents of Body, General.

Use only approved Spot-Welding Apparatus for repairs!

Remove or cover those vehicle components in the repair area which are susceptible to heat or dust.

Following new body parts are required:

(1) Side panel, rear

Fig 1: Identifying Rear Left Side Panel
Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cuts in accordance with specified measurements and cut.

IMPORTANT: Cut outer metal sheet only.

Measurement a = approx. 100 mm from roof edge

Measurement b = approx. 375 mm from centrepoint of hole dia. 25 mm.

Open weld joints in areas (1).

Installation information:

Apply window glass adhesive to Cavity Acoustic Baffles (2).
Weld in Reinforcing Panels at all severance cuts.

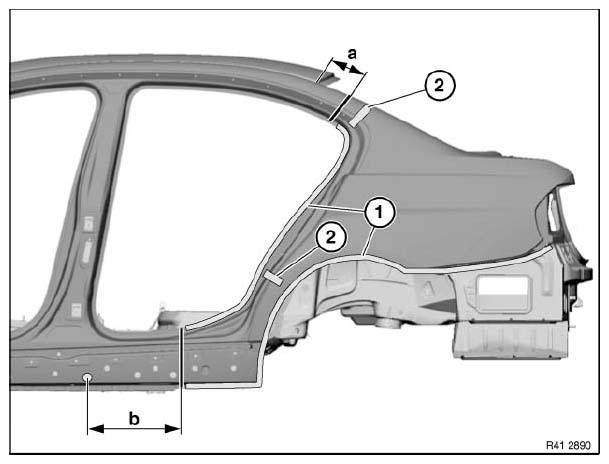

Fig 2: Identifying Weld Joints, Cavity Acoustic Baffles And Measurements

Courtesy of BMW OF NORTH AMERICA, INC.

Open weld joints in areas (1).

Open brazed joints in areas (2).

Fig 3: Identifying Weld And Brazed Joint Areas

Courtesy of BMW OF NORTH AMERICA, INC.
