51 71 ... Removing and installing/replacing multifunction pan

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove Left and Right luggage compartment wheel arch trims

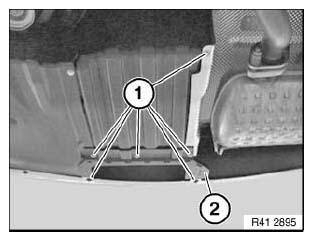

Release screws (1).

Remove guide (2).

Fig 1: Identifying Guide And Screws

G04728626

Courtesy of BMW OF NORTH AMERICA, INC.

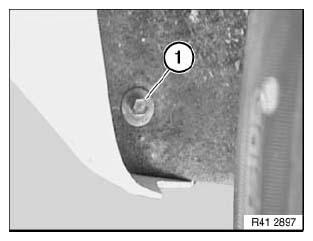

Release screw (1).

Fig 2: Identifying Screw

G04728627

Courtesy of BMW OF NORTH AMERICA, INC.

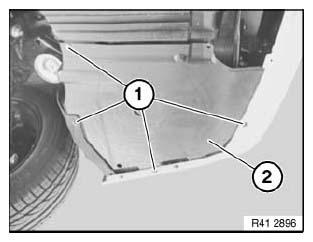

Release screws (1).

Remove cover (2).

Fig 3: Identifying Cover And Screws

G04728628

Courtesy of BMW OF NORTH AMERICA, INC.

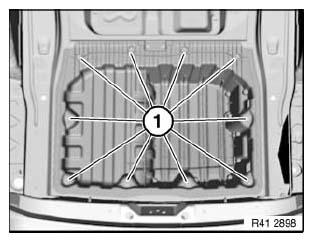

Release nuts (1) and remove multifunction pan.

For tightening torque refer to 51 71 9AZ in 51 71 SEALS AND LOOSE BODY PARTS .

Fig 4: Identifying Multifunction Pan Nuts

G04728629

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

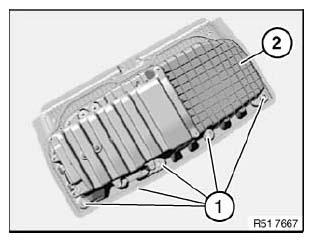

Seals (1) on multifunction pan (2) must be replaced each time they are removed.

Fig 5: Identifying Seal And Multifunction Pan

G04728630

Courtesy of BMW OF NORTH AMERICA, INC.
