51 71 ... Removing and installing/replacing left/right reinforcement cover

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

Release bolt (1) on front assembly underside protection.

Release screws (3) and nuts (4).

Remove reinforcement cover (2).

Installation:

Make sure reinforcement cover (2) is correctly seated.

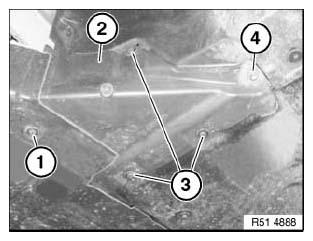

Fig 1: Identifying Reinforcement Cover, Screws, Nut And Bolt

Courtesy of BMW OF NORTH AMERICA, INC.
