51 48 001 Removing and installing/replacing insulation lining on hood/bonnet

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Illustration created using the E87 as an example. There may be differences in detail in the case of other vehicle models.

Release threaded rivets (1) on insulation lining (2).

Remove insulation lining (2).

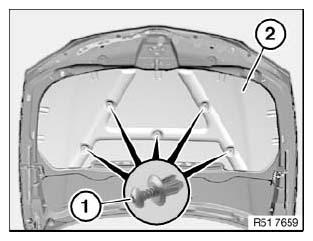

Fig 1: Identifying Threaded Rivets And Insulation Lining

Courtesy of BMW OF NORTH AMERICA, INC.
