51 47 490 Removing and installing / replacing front assembly underside protection

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Illustration created using E87 120i as an example. There may be differences in detail in the case of other models.

Release screws (1).

Pull underbody protection (2) forward under bumper trim (3).

Installation:

Centre underbody protection (2) and tighten down screws (1).

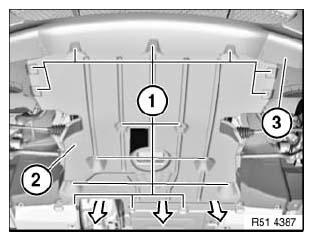

Fig 1: Identifying Underbody Protection, Screws And Bumper Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

If necessary, modify or replace front section (1) of underbody protection
