51 47 ... Removing and installing/replacing left or right underbody panelling
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
Only if removing left underbody panelling:
- Remove rear Underbody Protection
NOTE:
Work shown on 320d by way of example, deviations in detail are possible in other models.

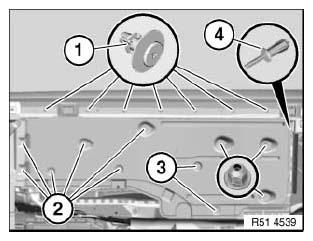

Release plastic nuts.
Release screws (1, 2 and 3).
Release expansion rivet (4).
Installation:
Replace faulty expander rivets.
Make sure underbody panelling is correctly seated.
