51 45 263 Removing and installing/replacing instrument panel trim on right

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 321

Carefully release trim (1) with special tool 00 9 321 from retainers (3) and lock pins (2).

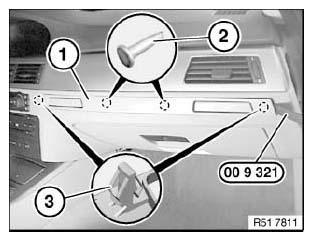

Fig 1: Identifying Special Tool (00 9 321), Release Trim, Retainers And Lock Pins

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clips (Hutfix) (1) must be seated in associated mountings.

Replace clips (Hutfix) (1) if they were released during removal.

Turn clip (Hutfix) (1) with screwdriver to left by approx. 90°
Lever out clip (Hutfix) (1) from below

Fig 2: Installing Hutfix Clips In Associated Mounting
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Lock pins (1) and retainers (3) on trim (2) must not be damaged.

If necessary, replace lock pins (1) and retainers (3).

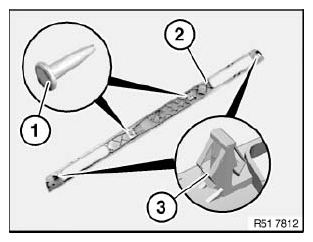

Fig 3: Identifying Lock Pins, Retainers And Trim

Courtesy of BMW OF NORTH AMERICA, INC.
