51 45 181 Removing and installing/replacing bottom right trim for instrument panel

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Move front passenger seat completely towards rear.

Release screws (1).

Feed out trim (2) bottom front.

If necessary, detach plug from footwell light.

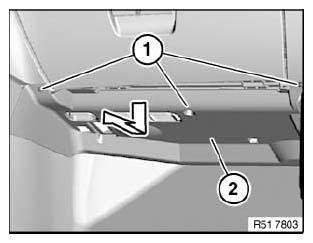

Fig 1: Identifying Trim And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Guides (1) on trim (2) must not be damaged.

Replacement:

If necessary, remove Footwell Light

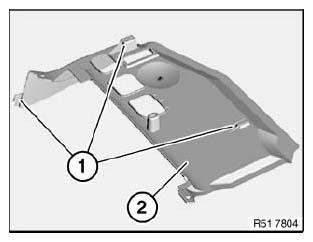

Fig 2: Identifying Guide And Trim

Courtesy of BMW OF NORTH AMERICA, INC.
