51 45 ... Replacing side cover on instrument panel
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.
- 00 9 340
Necessary preliminary tasks:
- Pull off mucket of front door in area of cover

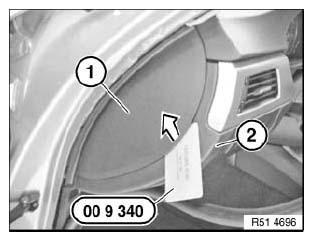

Unclip cover (1) with special tool 00 9 340 in direction of arrow from instrument panel trim (2).

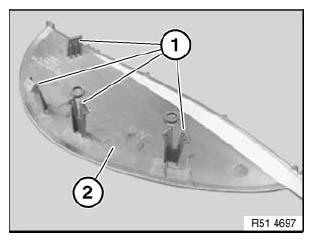

Retaining clips (1) of cover (2) must not be damaged.
