51 31 025 Replacing left or right gutter strip along windscreen
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.
- 00 9 323
Necessary preliminary tasks:
- Remove Gutter Strip
NOTE:
To facilitate installation, coat seal and gutter strip with water.

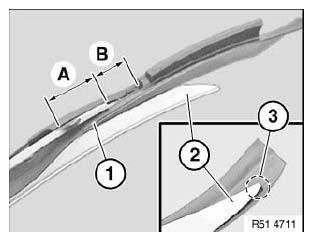

Fit inner part (1) of seal in accordance with measurements (A and B) on gutter strip (2).
A= approx. 30 mm
B= approx. 15 mm
Push seal (1) onto gutter strip (2) until both are flush in area (3).
Installation:

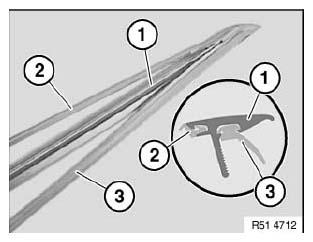

Outer part (2) and inner part (3) of seal must not be stretched.
Fit outer part (2) and inner part (3) of seal on complete gutter strip (1).
If necessary, use special tool 00 9 323 as an aid.

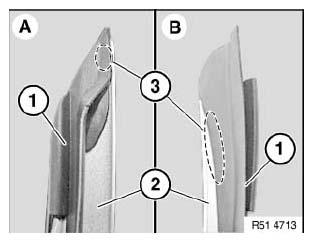

Align seal (1) to gutter strip (2) and secure in area (3) with Loctite 380.
A= Gutter strip, top
B= Gutter strip, bottom
