51 24 145 Removing and installing/replacing button for rear lid actuation

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 323

Move special tool 00 9 323 under front edge of button (1) and lever out button (1).

Pull button (1) out of rear lid (2).

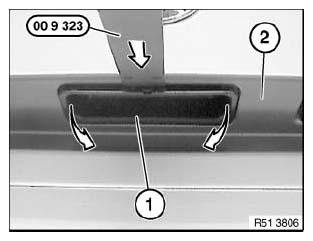

Fig 1: Identifying Button, Rear Lid And Special Tool (00 9 323)

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug (1) and remove button (2).

Installation:

Perform function check with rear lid open.

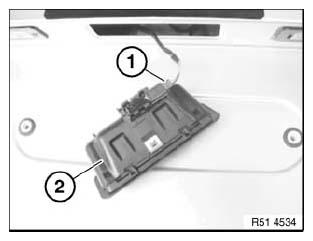

Fig 2: Identifying Plug And Button

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carefully release catches (1) and remove microswitch (2).

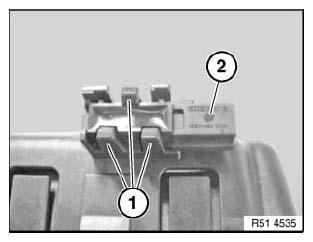

Fig 3: Identifying Catches And Microswitch

Courtesy of BMW OF NORTH AMERICA, INC.
