51 21 180 Removing and installing/replacing cover on outside handle

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

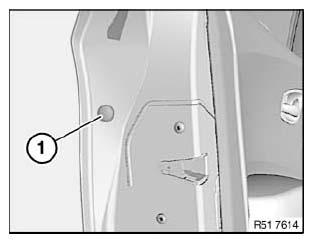

Lever out cap (1) and release screw underneath.

Installation:

If necessary, replace faulty trim (1).

Fig 1: Identifying Trim

G04728314

Courtesy of BMW OF NORTH AMERICA, INC.

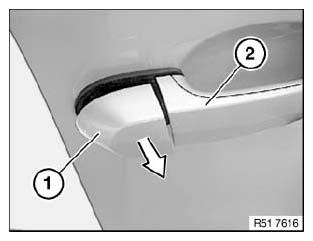

Pull off cover (1) in direction of arrow with outside door handle (2) opened slightly.

Fig 2: Identifying Door Outside Cover And Handle

G04728322

Courtesy of BMW OF NORTH AMERICA, INC.

Version with light package:

Installation:

Make sure outside door handle light (1) is correctly positioned in area (2).

Guides (3) of outside door handle light (1) must be correctly seated in carrier for outside door handle (4).

Fig 3: Identifying Outside Door Handle Light, Guides And Outside Door Handle

G04728316

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

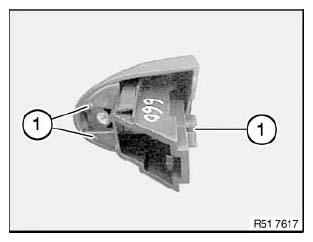

Guides (1) must not be damaged.

Fig 4: Identifying Guides

G04728324

Courtesy of BMW OF NORTH AMERICA, INC.
