51 16 405 Removing and installing/replacing roller sun blind on side window of left or right rear door

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove Rear Door Trim Panel

Carefully release catches (1) and remove roller sun blind (2) in direction of arrow.

Installation:

Make sure catches (1) are correctly seated.

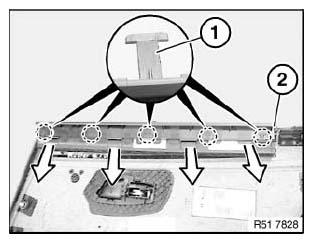

Fig 1: Identifying Roller Sun Blind And Catches

G04728279

Courtesy of BMW OF NORTH AMERICA, INC.

Fold up handle (1) and feed out with roller sun blind (2) through frame (3).

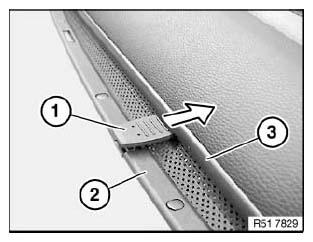

Fig 2: Identifying Handle, Roller Sun Blind And Frame

G04728280

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Guides (1) must not be damaged.

Roller sun blind must be correctly inserted in guides (1).

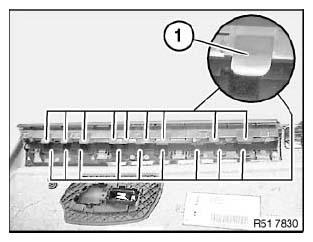

Fig 3: Identifying Guides

G04728281

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement up to build date 06/2005:

NOTE: Because there are visual differences between the old and new build dates, it is necessary to replaced the left and right roller sun blinds.

When installing roller sun blind in door trim panel (build date up to 06/2005), disconnect blocking finger (1) from roller sun blind (2) and door trim panel (3).

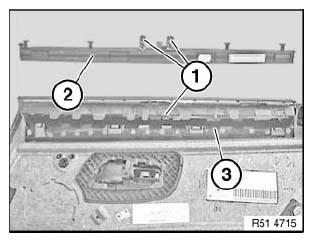

Fig 4: Identifying Blocking Finger, Roller Sun Blind And Door Trim Panel

G04728282

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remove clip (2) before fitting sun roller blind (1).

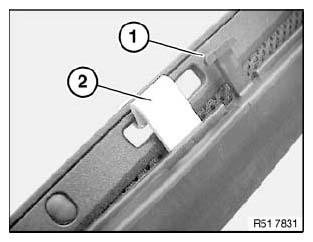

Fig 5: Identifying Clip And Sun Roller Blind
