51 16 080 Removing and installing or replacing sun visor and left or right counter support

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The operation is shown on the left side; proceed in the same way for the right side.

Fold down sun visor (5).

Lever out trim (2) on counter support (1) and release screw underneath.

Release screws (3) on holder (4).

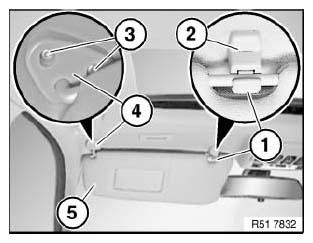

Fig 1: Identifying Sun Visor, Trim, Screws, Counter Support And Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Lift out sun visor (1).

If necessary, pull out cable (2) slightly and disconnect plug connection (3).

Installation:

Perform function check on lighting.

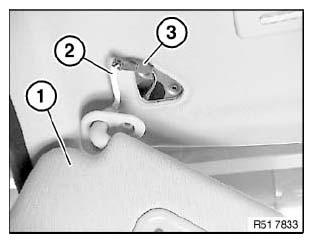

Fig 2: Identifying Sun Visor, Cable And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
