51 16 060 Removing and installing/replacing interior rearview mirror (with mirror arm end caps)

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: Work may only be carried out at a room/object temperature of 18 ... 28°C.

If this cannot be guaranteed (cold/hot countries), it is necessary to equalize the temperature of the windscreen, mirror foot and rearview mirror (e.g. car left to stand indoors or in the shade for at least 30 minutes).

Version with remote control for central locking:

If necessary, disconnect negative lead from Battery .

Version with compass:

Check compass function if replacing or after disconnecting interior mirror plug connection or battery.

If necessary, Calibrate Compass In Interior Rearview Mirror. .

IMPORTANT: To avoid breaking windscreen:

Snap out (press) rearview mirror only in direction of travel towards windscreen.

Do not under any circumstances twist the mirror foot when removing.

Twisting the mirror off the mirror mount will damage the rear catch.

If the rear catch is damaged, the mirror will be loose when installed and must be replaced.

NOTE: Do not exert any pressure on mirror foot when removing end caps (1).

Press end caps (1) towards mirror housing (2); this releases clip connection of both caps (1).

In order not to create any tension at the mirror foot, simultaneously apply counter pressure to the mirror housing when removing the end caps.

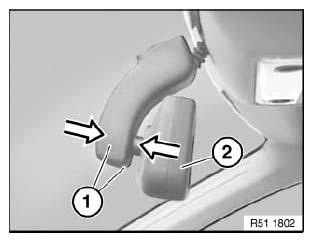

Fig 1: Identifying End Caps And Mirror Housing
G04728227Courtesy of BMW OF NORTH AMERICA, INC.

Twist mirror (1) at an angle towards front and right/top. Swivel left end cap (2) off ball neck in direction of arrow; this detaches the engagement clip (3) from the metal foot.

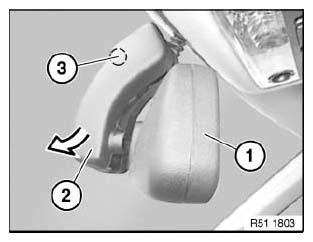

Fig 2: Identifying Mirror And Engagement Clip
G04728228Courtesy of BMW OF NORTH AMERICA, INC.

Twist mirror (1) at an angle towards front and left/top.

Swivel right end cap (2) off ball neck in direction of arrow; this detaches the engagement clip from the metal foot.

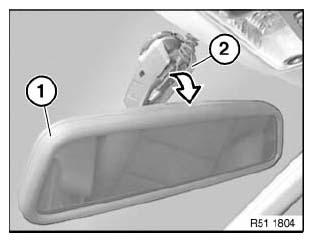

Fig 3: Identifying Right End Cap And Mirror
G04728229Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clips (1) and retaining hooks (2) of end caps (3) must not be damaged, replace if necessary.

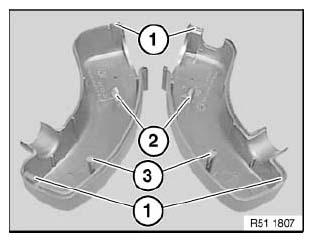

Fig 4: Identifying Clips, Retaining Hooks And End Caps
G04728230Courtesy of BMW OF NORTH AMERICA, INC.

Version with cable (X):

Disconnect plug connection (1).

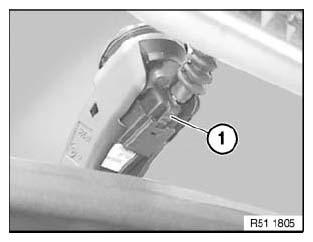

Fig 5: Identifying Plug Connection
G04728231Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: Risk of damage!

Do not pull off rearview mirror (1) from windscreen against direction of travel and or snap out by turning.

Snap out interior mirror (1) from mirror mount (2) towards front with increasing pressure (not abruptly) and remove.

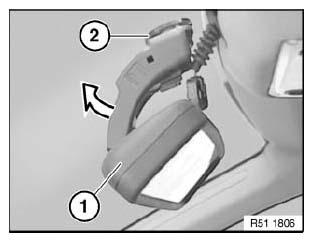

Fig 6: Identifying Interior Mirror And Mirror Mount
G04728232Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

  1. Twist mirror foot by approx. 45° and fit to mirror mount.
  2. Turn mirror foot until it engages on mirror base.
    Fig 7: Twisting Mirror Foot And Fit To Mirror Mount
    G04728233Courtesy of BMW OF NORTH AMERICA, INC.

Only replace with version with remote control for central locking:

Initialize all transmitters (ignition keys), refer to Owner's Handbook.
